Pi Display e-Paper 7.5

€144.00

Product Weight: 0.0500KG

Add To Wishlist Add To Compare

Product Details

SKU : 48-013505
Stock : Available

Guaranteed Safe Checkout

Raspberry Pi

Raspberry Pi offers cost-effective, high-performance computing for businesses and the home. Designed and manufactured in the UK.

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

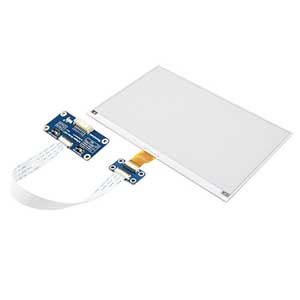

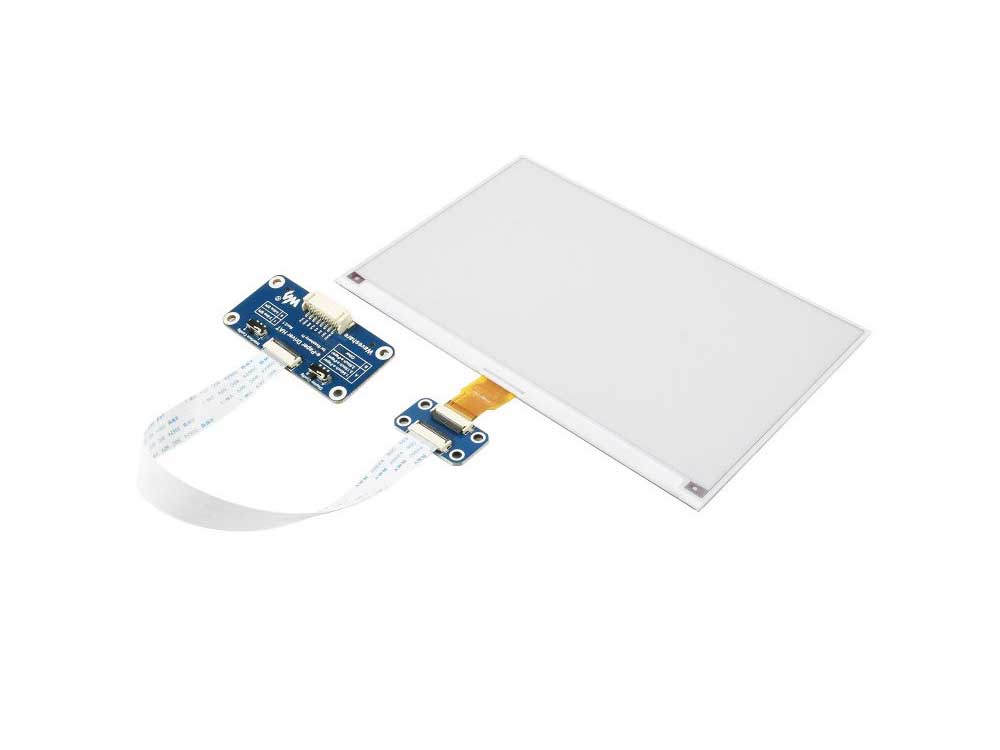

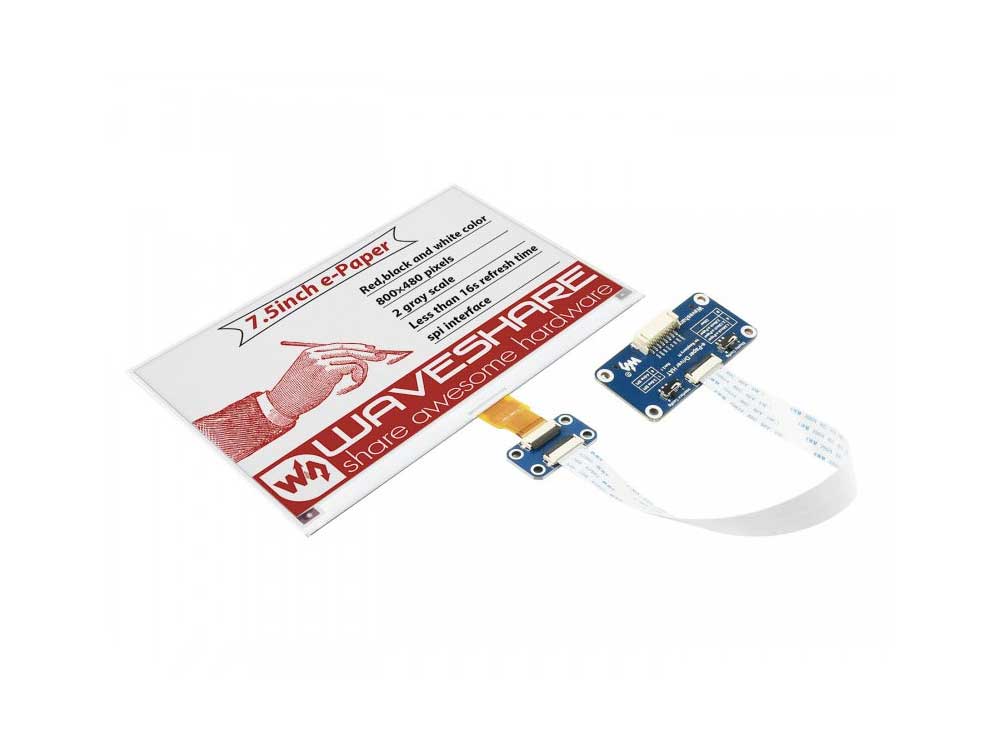

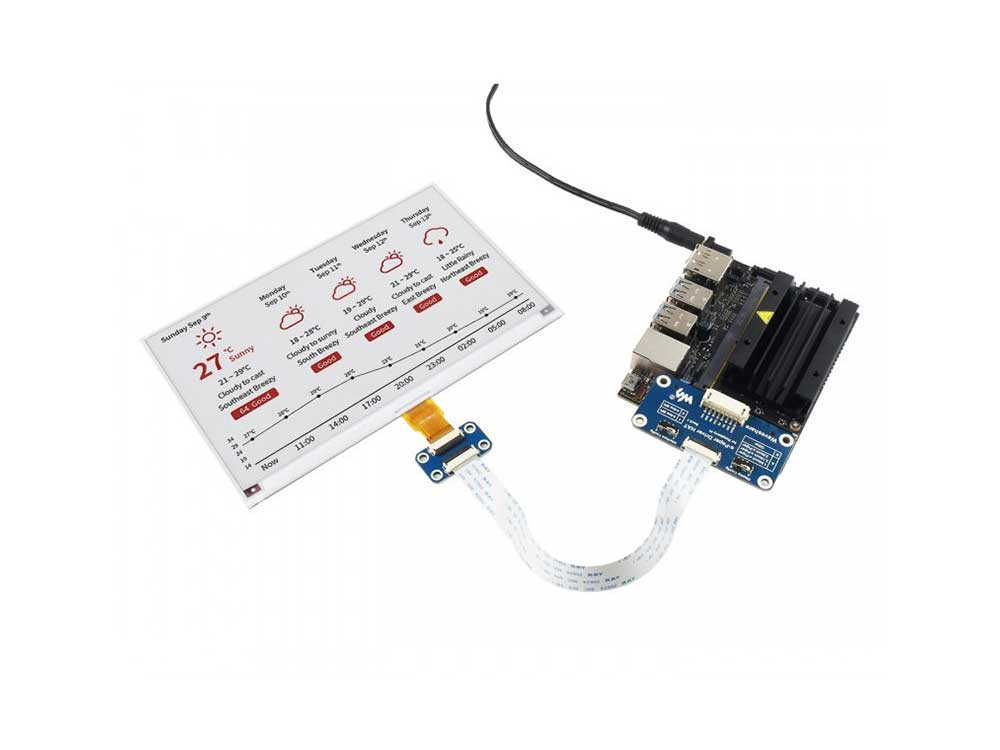

Pi Display e-Paper 7.5″ HAT 800×480, Red / Black / White, SPI

Features at a glance

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing

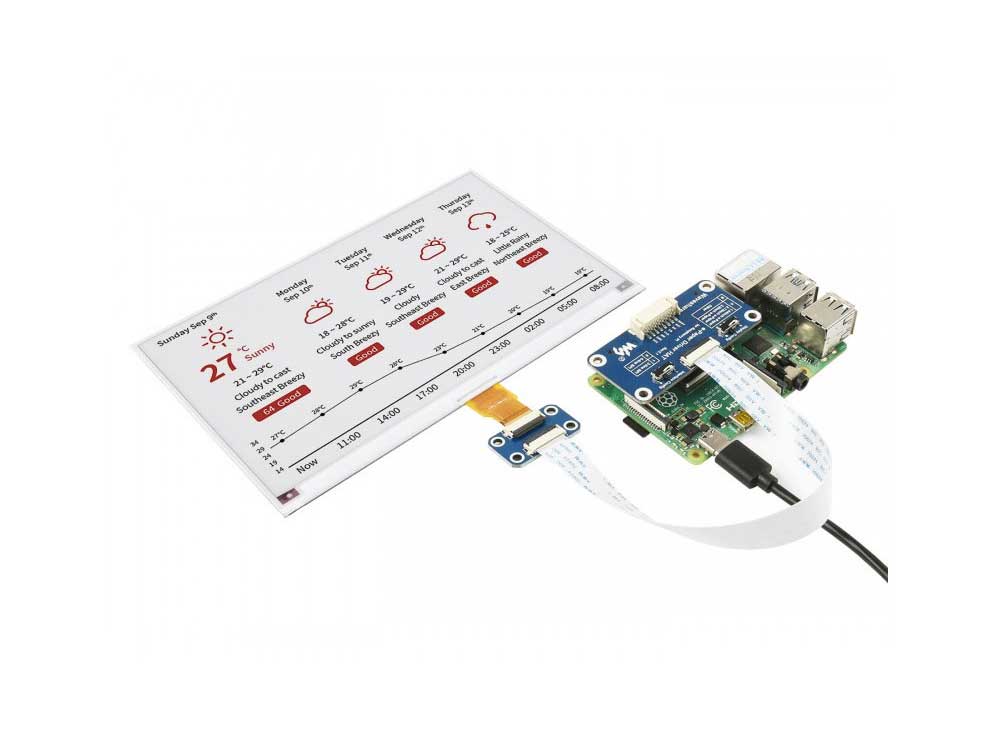

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
Onboard voltage translator, compatible with 3.3V / 5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

operating voltage	3.3V/5V	display color	red, black, white
interface	3-wire SPI, 4-wire SPI	grey scale	2
outline dimensions	170.2 × 111.2mm	full refresh time	16s
display size	163.2 × 97.92mm	refresh power	48mW (typ.)
dot pitch	0.205 × 0.204mm	standby current
resolution	800 × 480 pixels	viewing angle	>170°

VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data / Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, high active

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags…

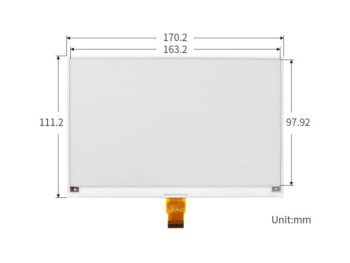

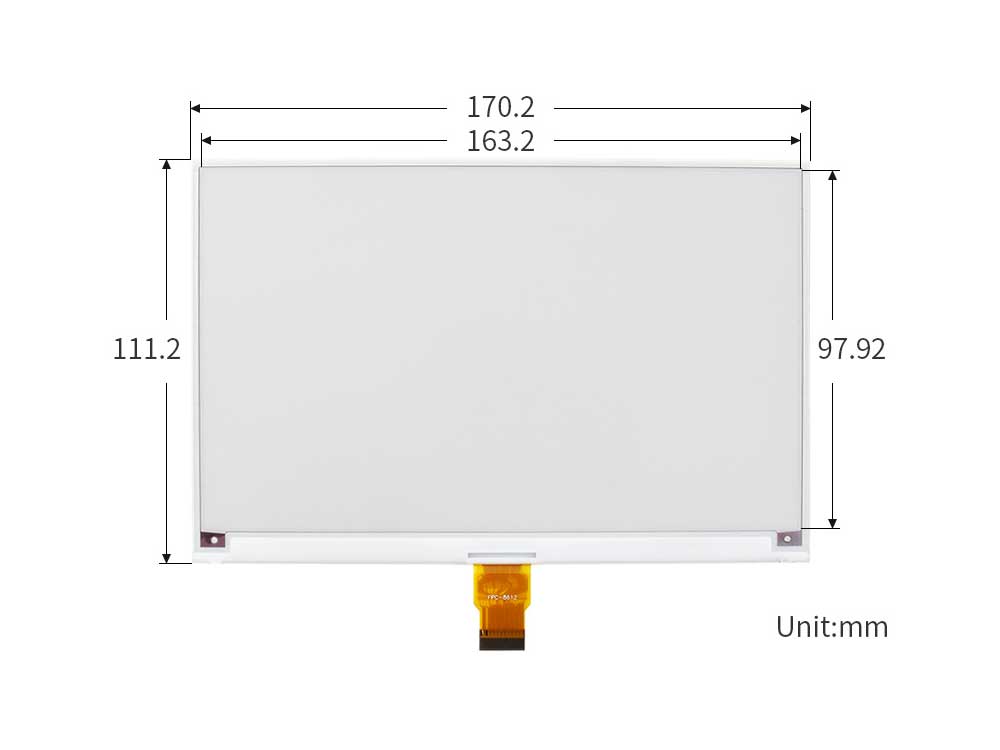

Outline dimensions

Inches	• 7
Κατάσταση	• New
